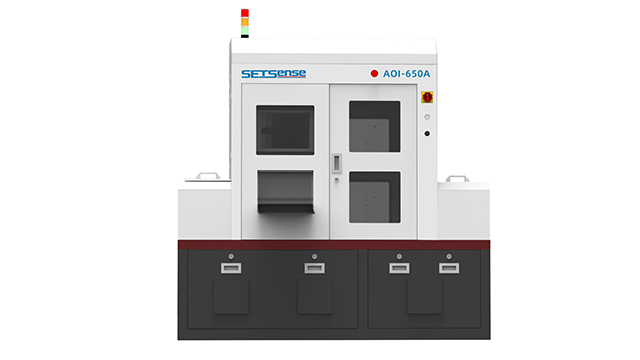

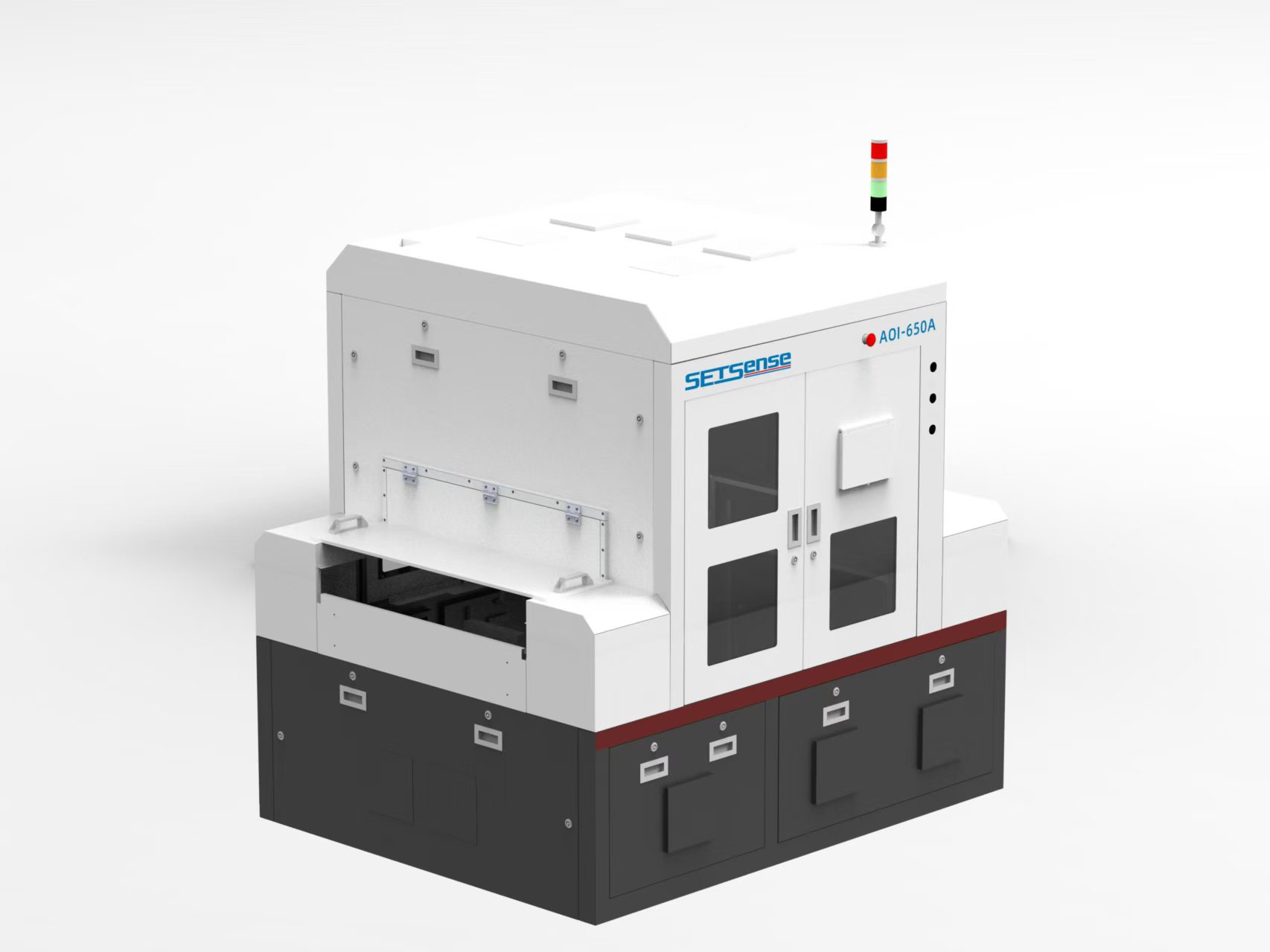

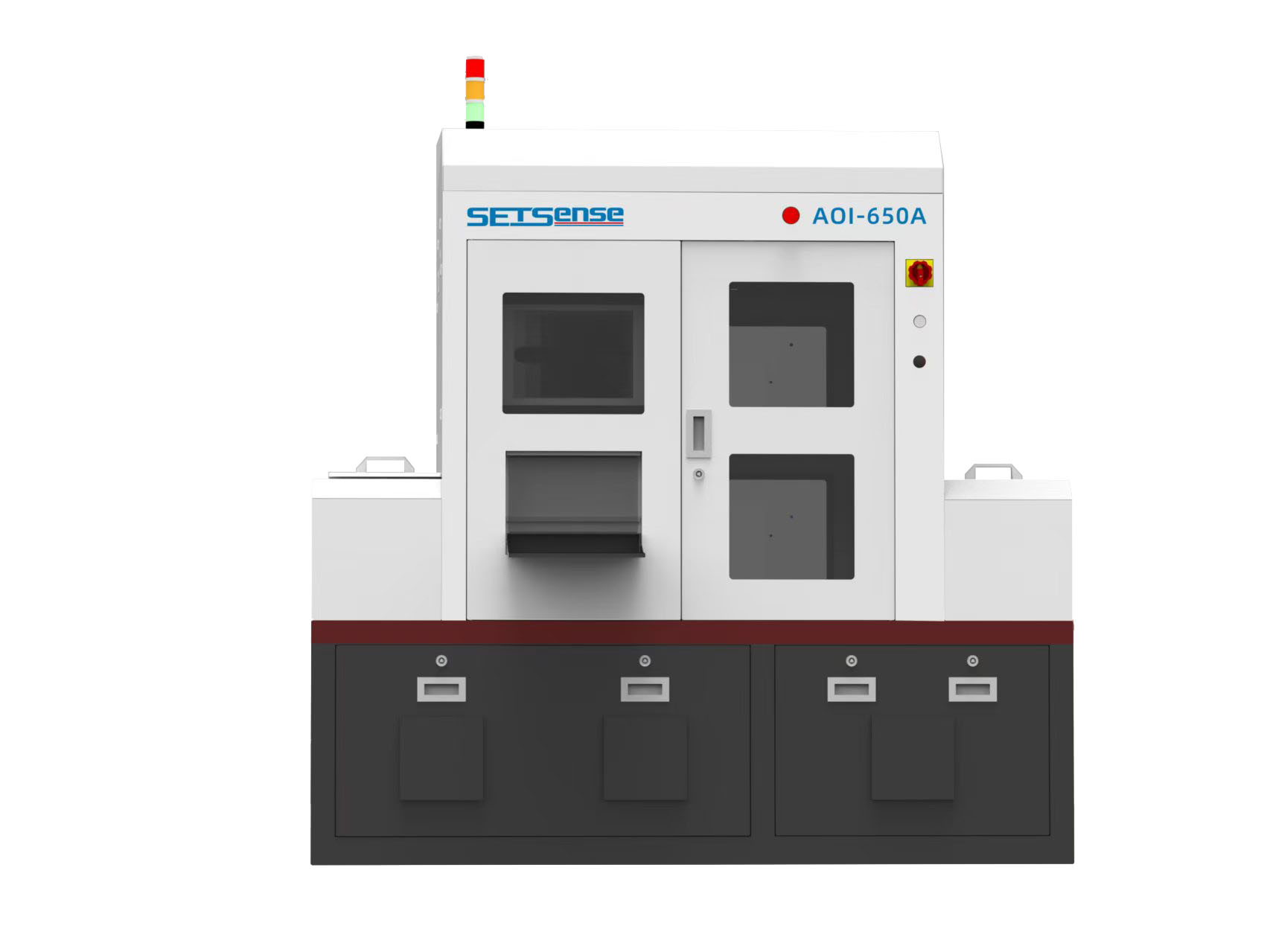

最小線寬/線距/Minimum line width/

spacing

3.0mil/3.0mil

檢測尺寸/Inspection Size

MIN:14寸*14寸 14Inches*14Inches(350*350mm)

MAX：25寸*25寸 25Inches*25Inches(650*650mm)

檢測尺寸拓展/Detection of dimensional extensions

進板傳輸方向的檢測尺寸支持拓展至30寸（762mm）——[選配]

Extension of the inspection scale to 30 Inches (762mm) in the incoming panel plate transfer direction——[optional]

板厚范圍/Panel thickness

0.2-4.5mm

圖像采集系統/Image Capture System

16K高分辨率線掃描成像系統

16K High Resolution Line Scan System

數據格式/Data formats

GERBER RS - 274X

資料轉換時間/Profile conversion time

3-10分鐘/3-10 minutes

檢測板面形式/Detection of plate surface form

[標配]：內層、布線類型包括訊號層、電源地層、混合屏蔽層、網格

[選配]：外層線路訊號層、電源地層、混合屏蔽層、網格

[Standard]：Inner lager, wiring type including signal layer, power layer, hybrid shield, mesh.

[Optional]：Outer layer, signal layer, power layer, hybrid shield,mesh

檢測材質/Test Material

FR-4/CEM 裸銅蝕刻板，電鍍銅，二次銅，鋁基板

FR-4/CEM Bare Copper Etched plate,Electroplated Copper,

SecondaryCopper, Aluminium Substrate

可檢測缺陷/Detectable defects

短路；開路；缺口；毛刺；針孔；殘銅；隔離圈凸銅

Short Circuit; Open Circuit; Notch; Burr; Pinhole; Residual Copper;

lsolation Ring Bump Copper

定位方式/Positioning method

自動整板靠邊定位/Automatic whole panel edge positioning

缺陷復核/Defect review

檢修站核準/Approval of inspection stations

光源系統/Lighting System

多角度LED聚光式線掃多組式系統（壽命＞=20000小時）/Multi-Angle LED Spotlight Line Sweep Multi-Group System (Lifetime＞=20000 hours)

檢測方法/Detection Method

ISP技術、元素特征學習、亞像素輪廓分析比較/Comparison of ISP techniques,

elemental feature learning, and subpixel contour analysis

操作界面/Operation Interface

支持中英文/Support for Chinese and English

工作環境/Working Environment

18℃~26℃ RH：40%~60%（非凝結/non-condensable）

電源/Power Supply

AC 200V 50HZ 單相三線制 Fuse 32Amp/AC 220V 50HZ Single phase 3-wire Fuse 32Amp
